| Model | SS21 |
|---|---|
| Wattage | 40w/60w |
| Lumen Efficiency | 140lm/w |
| Solar Panel | 50w/80w |
| Battery LiFePO4 | 12v-26ah/30ah |
| Material | Aluminum Di-casting+PC cover |
| Finish | Sliver |
| Working Time | For 2 rainy days(can be customized) |
| DESCRIPTION OF CHINA ALL IN ONE SOLAR STREET LIGHT | |||
 |
|||
| Features
♦P65 Waterproof&Aluminum body – Solar street light IP65 waterproof ♦High end led chips are equipped and providing high lumens up to 140lm per watt. The budget of project could be reduced with small ♦Solar panel, Monocrystalline silicon of 19.5% efficiency, which is high efficiency to ensure the solar charge in the daytime. ♦Working temperature: -20°C-50°C ♦The lens of solar street light is made of acrylic with UV additive, so there will be no yellowing. ♦3 year warant for the all in one solar street light |
| Working Lighting Mode | PIR sensor for Remote controller |
| Work for over 10 hours per night This all in one solar street light working mode is based on two contant rainy days You also can send us for customized working plan. (working mode can be adjusted according to client’s demands). |
 |
| Mode 1: Solar Street Lights outdoor dusk to dawn Automatically turns on at dusk and turns off at dawn Mode 2: Motion sensor: Solar street light turns to 100% brightness mode in 5 seconds when motion is detected, it reverts back to 20% energy saving mode if no motion is detected Detection range is up to 26 feet with 120°detection angle). Mode 3: Solar power light working time 2 hours, 4 hours and 6 hours at night, then lights turn off. |
 |
 |

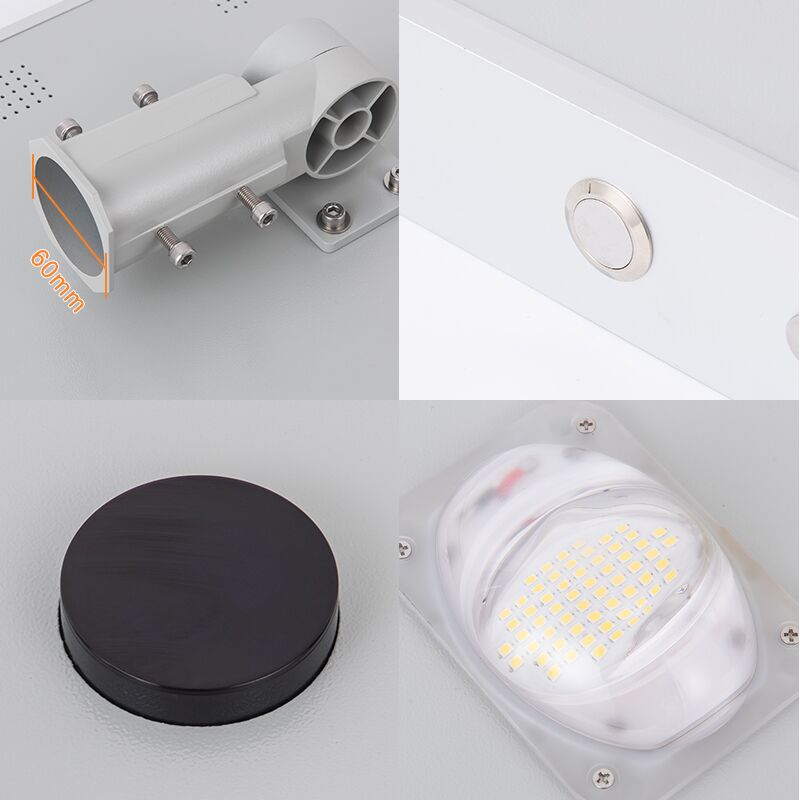

Solar panel Monocrystalline silicon with higher efficiency |
| SMD3030 chips
Phillips led chips, with 140lm/w |
|
| Battery Lipepo4 battery with over 3000cycles |
|
| Motion sensor Flexible and energy saving |
|
| Switch Turn on and off the all in one solar streetlight |
|
Test Report |
 |
|
| Distributions Curves | TYPE II SHORT | TYPE III MEDIUM |
 |
 |
|
| Simulation of 8M pole 60W Integrated Solar Street Light |  |
|
 |
||
 |
||
| Picture |  |
| Model | SS21-30w |
| Led Chips | Phillips |
| Wattage | 30W |
| Lumen Output | 3600LM |
| Control | PIR Control |
| Solar Panel | 40W |
| Battery Capacity | 12V,22AH |
| Battery Lifetime | Lifepo4, 3000cycles |
| Dimension | 80*30*5cm |
| Installing Height | 5-6M |
| MOQ | 10pcs |
Easy Installation
LED light, solar panel, lithium battery and controller,all in one compact design.
With this new design, the solar street light is easy installation, it could be installed by untrained workers within 5 minutes
Better performance
This 80W all in one solar street light is made of high quality LED lamp light,durable, superbright.
High end LED chips: It uses Phillips 3030 led chips with high lumen output. The lumen efficiency is up to 140lm/W which is 30% higher compared with existing integrated solar streetlights.
Solar Panel: This all in one solar street light is using monocrystalline silion, with 19.5% high efficiency solar panel, which can ensure the charging efficiency.
Anti-UV LENS: Imported aging resistant plastic particle is adopted for secondary light distribution, glare threshold lower than 10%, even degree over 0.7. No light spot or yellow circle on road
LIFEPO4 BATTERY: The solar street light is using LifePo4 Battery with over 3000cycles. The battery capacity is sustainable for lasting 2 or 3 rainy days
Intelligient Operation
NIGHT SENSOR: When any people pass by, the lamp will turn bright, and it will turn to dim light or off when people left. It will turn off at daytime.
ECO-FRIENDLY & ENERGY-SAVING: To charge under the sunlight during the day, transfer the Solar Energy into electricity and store them, and lighting at night. It’s very incredibly energy efficient.
Constant current charging and discharging management module uses high quality components from international brand like ST and IR, makes sure working life over 50000 hours. Lithium battery is equipped with automatic activation and low temperature protection function. With advanced MPPT technology, tracking efficiency is not less than 99.8%, DC-DC exchange rate is 98%. 4 periods time control mode can meet different demands from customers. Off line 2.4G programmable remote control, communication distance is 50m. Parameters, operating mode and electric quantity could be managed by mobile APP or computer software. Protection grade is IP67.
Good Warranty Terms
If our producst have met a problem, and we will provide product or spare parts replacement within 3 year warranty period.
1. Is sample availabe for test?
Yes, we are accepting the sample orders for your testing.
2. What is the MOQ ?
Low MOQ, sample 1pc and first trial order 8pcs.
3. What is the delivery time?
The delivery time is 20-25 days after getting the deposit payment.
4. Do you provide OEM service?
Yes, Amber believes the fastest and the most efficient way is to cooperate with all greatest customers based OEM business. OEM are welcomed.
5. What if i want to print my own color box?
The MOQ of the colored box is 1000pcs, so if your order qty is less than 1000pcs, we will charge a extra cost 350usd to make color boxes with your brand.
But if in the future, your total ordering qty has reached 1000pcs, we will refund 350usd to you.
