| Model | Mars SS23 |
|---|---|
| Wattage | 20w/30w/40w/50w/60w |
| Lumen Efficiency | 110lm/W |
| Solar Panel | 40w/60w/80w/100w/120w |
| Battery LiFePO4 | 12v-20ah/30ah/40ah/60ah/72ah |
| Material | Aluminum Di-casting+PC cover |
| Finish | Grey/White/Black |
| Working Time | For 2 rainy days(can be customized) |
Features
♦ IP66 rated, appicable for all kinds for outdoor use.
♦ High quality die-casting aluminum lamp body, light weight, good heat dissipation performance
♦ The solar streetlight is using LifePo4 Battery with over 3000cycles. The battery capacity is sustainable for lasting 2 or 3 rainy days
♦ Reasonable structure design, elegant apperance
♦ This all in one solar streetlight is using monocrystalline silion, with 19.5% high efficiency solar panel, which can ensure the charging efficiency.
| Working Lighting Mode | |
| Work for over 10 hours per night This all in one solar streetlight working mode is based on two contant rainy days You also can send us for customized working plan. |
 |
| Working mode can be adjusted according to client’s demands. |
| Test Report |  |
|||
| Distributions Curves | TYPE II SHORT | TYPE III MEDIUM | ||
 |
 |
|||
| Simulation of 6M pole 40W Integrated Solar Streetlight |    |
|||

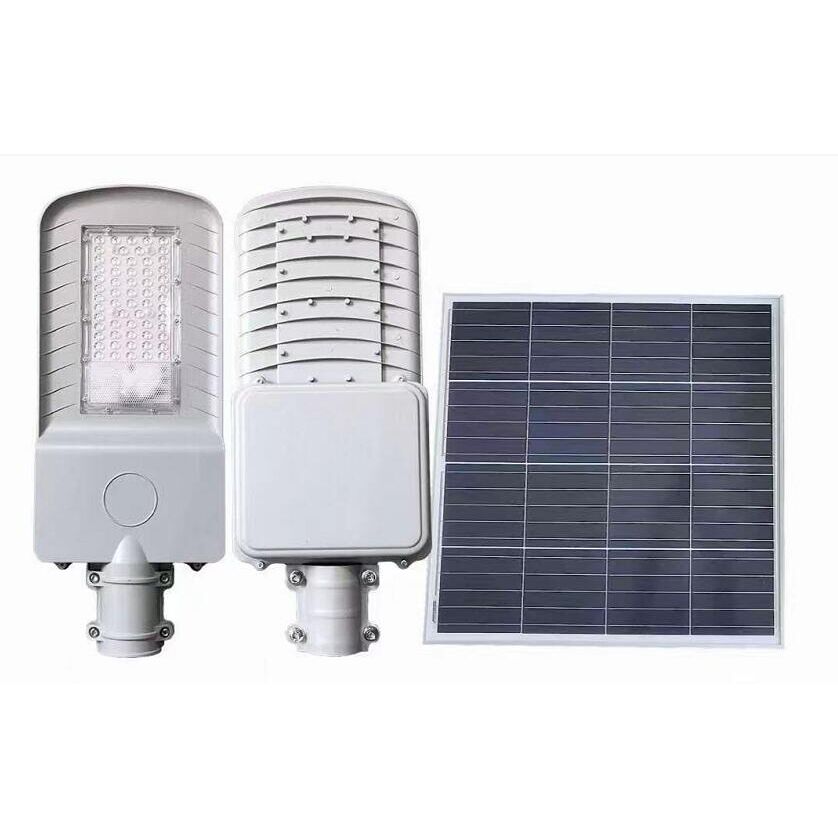

| Picture |  |
||||||
| Model | SS24 Mars-20W | SS24 Mars-40W | SS24 Mars-50W | SS24 Mars-60W | |||
| Led Chips | Phillips | Phillips | Phillips | Phillips | |||
| Wattage | 20W | 40W | 50W | 60W | |||
| Lumen Output | 2200LM | 4400LM | 5500LM | 6600LM | |||
| Control | SRNE controller | SRNE controller | SRNE controller | SRNE controller | |||
| Solar Panel | 40W | 80W | 100W | 120W | |||
| Battery Capacity | 12V,20AH | 12V,40AH | 12V,60AH | 12V,72AH | |||
| Battery Lifetime | Lifepo4, 3000cycles | Lifepo4, 3000cycles | Lifepo4, 3000cycles | Lifepo4, 3000cycles | |||
| Installing Height | 6M | 6M | 7-8M | 7-8M | |||
| MOQ | 10pcs | 10pcs | 10pcs | 10pcs | |||
Easy Installation
It is an enviromentally creative product of energy saving integrated solar street lights.
With this new design, it is easy installation, it could be installed by untrained workers within 5 minutes
Better performance
Compared to the solar lights with lead acid battery luminaries, this one is long lasting and work for longer time.
It uses 3030 light source with high lumen output, and glue filling techniquefor lens. The luminous efficiency is up to 140lm/W which is increased by more than 30% compared with existing module.
Built-in grade A powerful lithium ion battery, the battery cell is strictly sorted. Deviation between cells is lower than 4mΩ+5mV. Strict grouping promises consistency of internal resistance, and high efficiency of charging and discharging rate which is almost 99%.
Good heat radiation aluminum is used for external protection battery box; protection grade is IP67, guarantees working life over 8 years.
High quality spraying is adopted on surface treatment, which is better on adhesive force, corrosion resistance and aging resistant than painting, which can make the products stable at least for more than 10 years.
Good Warranty Terms
If our producst have met a problem, and we will provide product or spare parts replacement based on the warranty Terms.
However, circumstances below are not in warranty range:
Product are amaged during transportation, or malfunction caused by incorrect operation method of customer.
Operation violate to the setting condition, method of application and notes recorded in instruction
Malfunction caused by fire, earthquake, flood, typhoon or other natural disaster.
1. Is sample availabe for test?
Yes, we are accepting the sample orders for your testing.
2. What is the MOQ ?
The MOQ for this pathway light is 50pcs for both single color and RGBW(full color)
3. What is the delivery time?
The delivery time is 7-15 days after getting the deposit payment.
4. Do you provide OEM service?
Yes, Amber believes the fastest and the most efficient way is to cooperate with all greatest customers based OEM business. OEM are welcomed. 🙂
5. What if i want to print my own color box?
The MOQ of the colored box is 1000pcs, so if your order qty is less than 1000pcs, we will charge a extra cost 350usd to make color boxes with your brand.
But if in the future, your total ordering qty has reached 1000pcs, we will refund 350usd to you.
