ALL IN TWO Solar Streetlight-SS20

Additional information

Model

SS20

Wattage

30w

Lumen Efficiency

140lm/w

Solar Panel

60W

Battery LiFePO4

12v-21ah

Material

Aluminum Di-casting+PC cover

Finish

Sliver

Working Time

For 2 rainy days(can be customized)

Description

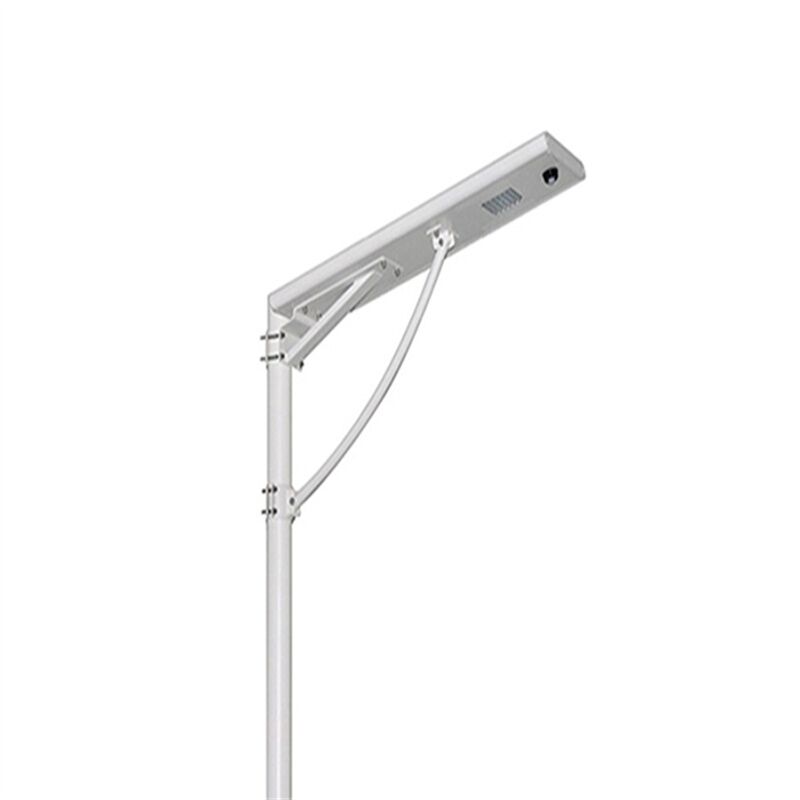

LED Streetlight integrated with battery and controller

SS20-1
Module Type Polycrystalline/Mono crystalline
Range Power 60W
PowerTolerance ±3%
Solar Cell Polycrystalline or Monocrystalline
Cell efficiencty 17.3%~19.1%
Modulee fficiency 15.5%~16.8%
Operating temperature -40℃~85℃
Solar Panel connector MC4 ( Optional )
Nominal operating temperature 45±5℃

Solar Panel

SS20-3
Module Type Polycrystalline/Mono crystalline
Range Power 60W
Power Tolerance ±3%
Solar Cell Polycrystalline or Monocrystalline
Cell efficiencty 17.3%~19.1%
Module efficiency 15.5%~16.8%
Operating temperature -40℃~85℃
Solar Panel connector MC4 ( Optional )
Nominal operating temperature 45±5℃
Lifetime More than 10 years

Lighting Poles

SS20-1-4
Material Q235 Steel
Type Octagonal or Conical
Height 3~12M
Galvanizing Hot dip galvanized (average 100 micron)
Powder Coating Customized powder coating color
Wind Resistance Designed to with stand wind speed of 160km/hr
Life Span >20 years

Anchor Bolt

SS20-1-5
Material Q235 Steel
Bolts and Nuts Material Stainless Steel
Galvanizing Cold dip galvanized process(optional)
Features Detachable type, helping to save the
volume and shipping cost

Features
Energy Saving:By using clean energy power from solar panel, reducing the use of electricity.
Motion Sensor: The solar streetlight has the motion sensor which can detect the cars or people moving, and provide the light when only needed.
Compact Lithium Battery: The light is using LifePO4 battery,it is good quality cells which can use for over 3000cycles.
Self-Clean: Aluminum fixture is very good for self cleaning. The dust can be washed away by rain easily. And the smooth surface will also make the snow and water very hard to gather on. This structure is very good for harsh environment.
Versatile mount option: The spigot can be adjusted to fit on the light pole to make it mounted vertically or horizontally. The adjustment also can be done to the angles of the light, to ensure the light distribution is fine.
Excellent Heat Dissipation: Integrated Aluminum die-casting house which is very good for heat release.
Reliable and Durable: The fixture is made of high strength aluminum housing. And all gaskets are UV resistant and silicone. The polycarbonate lens are with high light transmittance, over 92%. It is IP65, water resistant and dust resistant. IK 10 is strong enough for the big winds and can be used for years.
Widely Application: The solar light can be used in many places like garden parks, parking lots, roadways, pathways, squares. It also can be used in commercial space like gas station, pasture or farmlands. Also some outdoor places like ball parks, tennis courts and so on.
Advanced Optical Distributions: We have different lens to meet the different needs, from TYPEII-M to TYPEIII-M. Different IES are suitable for different roads
