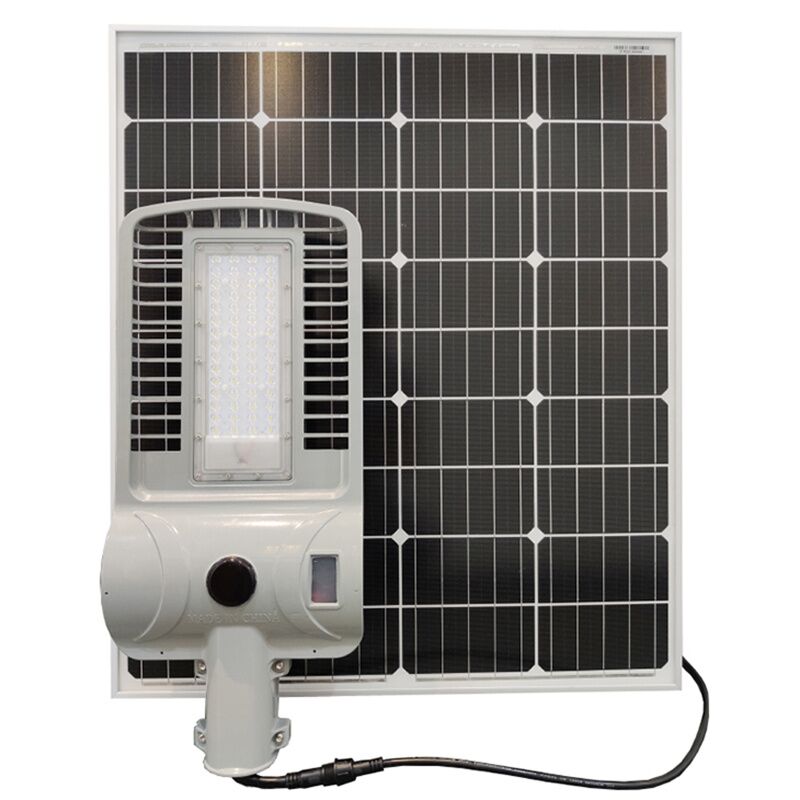

ALL IN TWO Solar Streetlight-SS19

Die-casting Aluminum fixture for good heat releasing
Multi-directional installation on a single pole
High lumen output with less wattage cosumption
Light output can be adjusted automatically with a built-in sensor(optional)
Integrated design which is easy for installation
Applicable use for City road, Street, Highway, Public area, Commercial district, Parking lot, Parks

Category: Solar Street Light Tag: street light

Description

LED Streetlight integrated with battery and controller

ALL IN TWO Solar Streetlight-SS19 (3)

LED Wattage	15W-40W available
IP Grade	IP65 Water-proof
LED Chip	Cree, Phillips, Bridgelux
Lumen Effiency	150lm/W
Color Temperature	3000-6000K
CRI	>80
LED Lifespan	>50000
Working Temperature	-10”C-60”C
Lighting Distributions	Type 2M
Controller	MPPT CONTROLLER
Battery	Lithium battery with 3 or 5 years warranty

Solar Panel

Module Type	Polycrystalline/Mono crystalline
Range Power	50W~290W
Power Tolerance	±3%
Solar Cell	Polycrystalline or Monocrystalline
Cell efficiencty	17.3%~19.1%
Module efficiency	15.5%~16.8%
Operating temperature	-40℃～85℃
Solar Panel connector	MC4 ( Optional )
Nominal operating temperature	45±5℃
Lifetime	More than 10 years

Lighting Poles

Material	Q235 Steel
Type	Octagonal or Conical
Height	3～12M
Galvanizing	Hot dip galvanized (average 100 micron)
Powder Coating	Customized powder coating color
Wind Resistance	Designed to with stand wind speed of 160km/hr
Life Span	＞20 years

Solar Panel Bracket

Material	Q235 Steel
Type	Detachable type for solar panel smaller than 200W. Welded bracket for solar panel bigger than 200W
Bracket Angle	Customized, based on direction of Sunshine , and the latitude of the installation places. The bracket will be adjustable
Bolts and Nuts Material	Stainless Steel
Galvanizing	Hot dip galvanized (average 100 micron)
Powder Coating	Good quality powder coating for outdoor
Life Span	＞20 years

Anchor Bolt

Material	Q235 Steel
Bolts and Nuts Material	Stainless Steel
Galvanizing	Cold dip galvanized process(optional)
Features	Detachable type, helping to save the volume and shipping cost

ORDER PROCESS

Order Process-1

PRODUCTION PROCESS

Production Process3

Additional information

Model	SS19
Wattage	15-40w
Lumen Efficiency	140lm/w
Solar Panel	40w/60w/80w
Battery LiFePO4	12v-40ah/60ah/72ah
Material	Aluminum Di-casting+PC cover
Finish	Sliver
Working Time	For 2 rainy days(can be customized)
