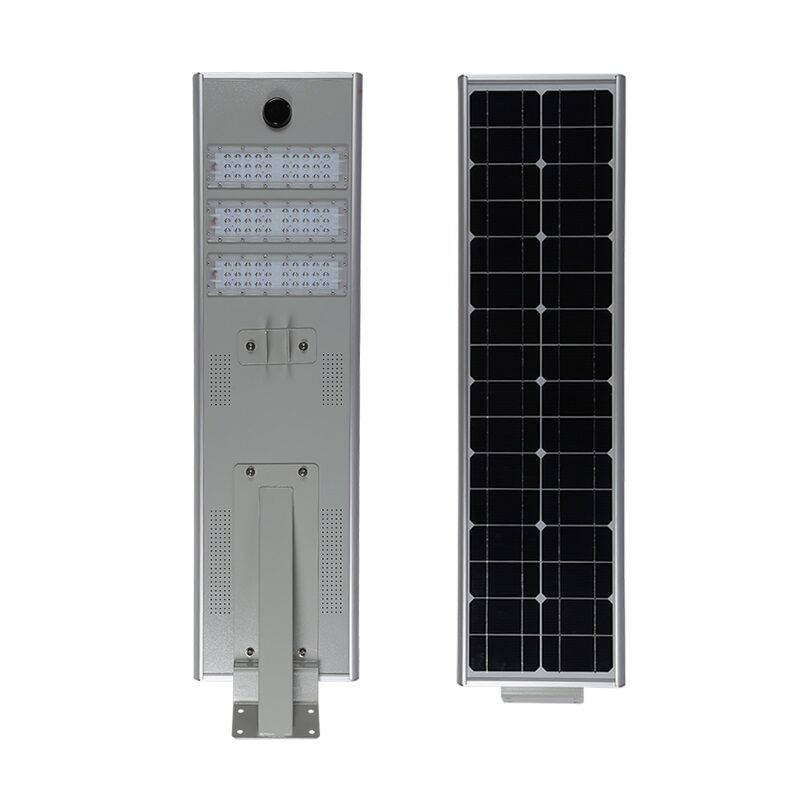

| Model | SS20-60W |
|---|---|
| Wattage | 60W |
| Lumen Efficiency | 140lm/w |
| Solar Panel | 60W |
| Battery LiFePO4 | 12v-30ah |
| Material | Aluminum Di-casting+PC cover |
| Finish | Sliver |
| Working Time | For 2 rainy days(can be customized) |

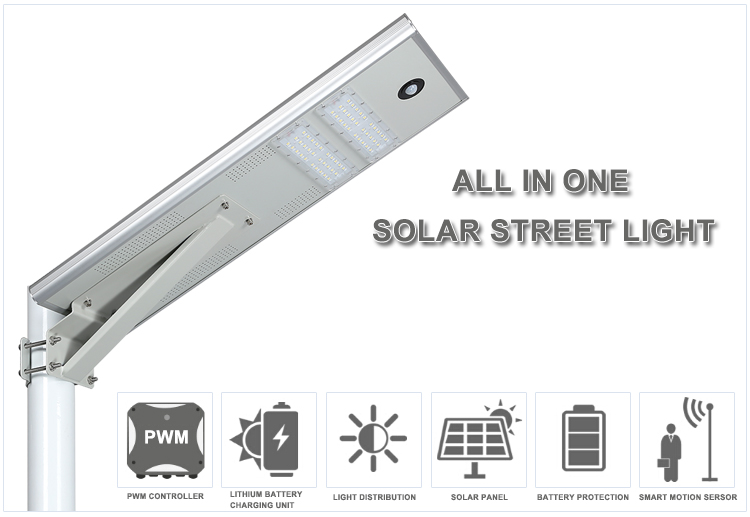

| DESCRIPTION OF CHINA ALL IN ONE SOLAR STREETLIGHT | |||
 | |||
| ♦Features ♦Suitable for all kinds of enviroment including salty places and marine areas. ♦Working temperature: -20°C-50°C ♦IP65 rated, Rust-proof, dustproof and waterproof. ♦No wiring,100% solar powered ,easy to install and ship. ♦This all in one solar streetlight is using monocrystalline silion, with 19.5% high efficiency solar panel, which can ensure the charging efficiency. ♦The solar streetlight is using LifePo4 Battery with over 3000cycles. The battery capacity is sustainable for lasting 2 or 3 rainy days |
| Working Lighting Mode | PIR sensor for Remote controller |
| Work for over 10 hours per night Work for 3 constant rainy days T You also can send us for customized working plan. (working mode can be adjusted according to client’s demands). |  |

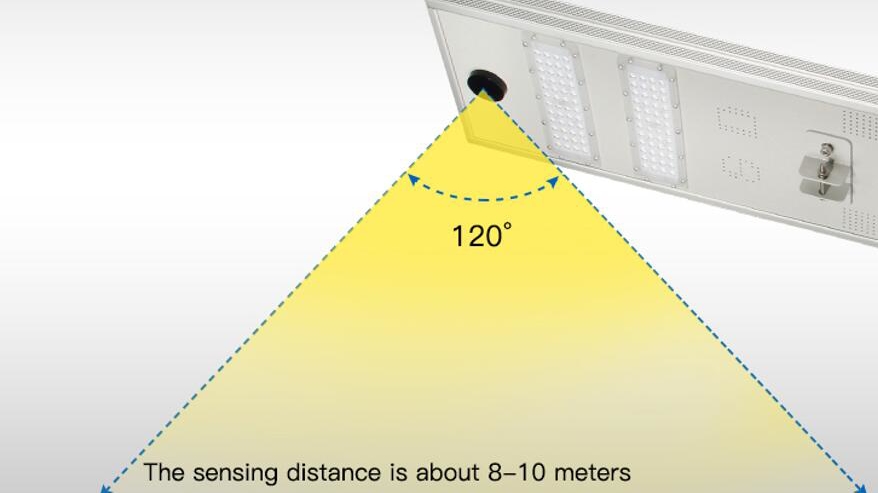

| PIR sensor With new technology of motion sensor, it can save the eletricity. During the night, all in one solar streetlight can work automatically controlled by PIR sensor; When people pass throught and on energy-saving mode, It will be on bright mode. |  |

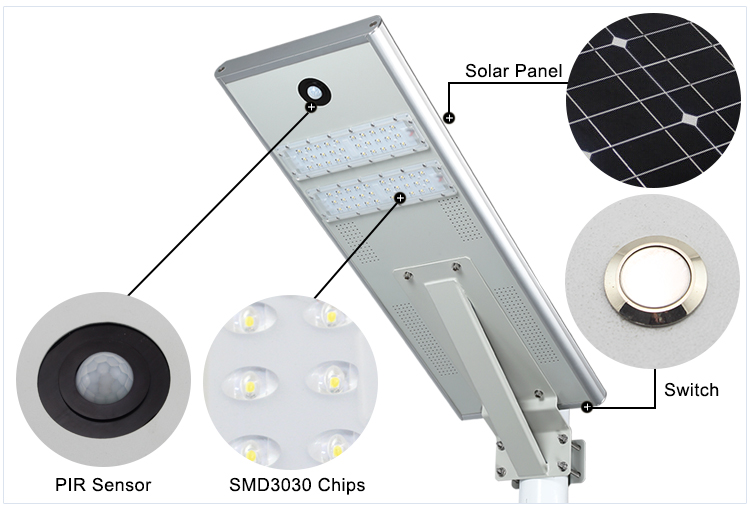

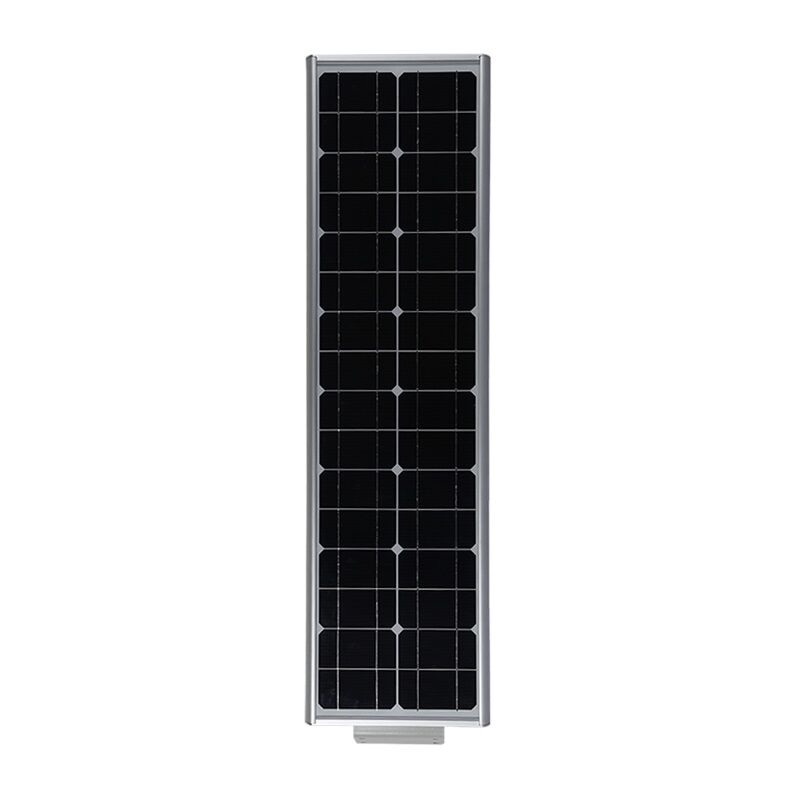

 | Solar panel Monocrystalline silicon with higher efficiency |
| Switch Turn on and off the all in one solar streetlight | |
| Phillips led chips, with 140lm/w |
|

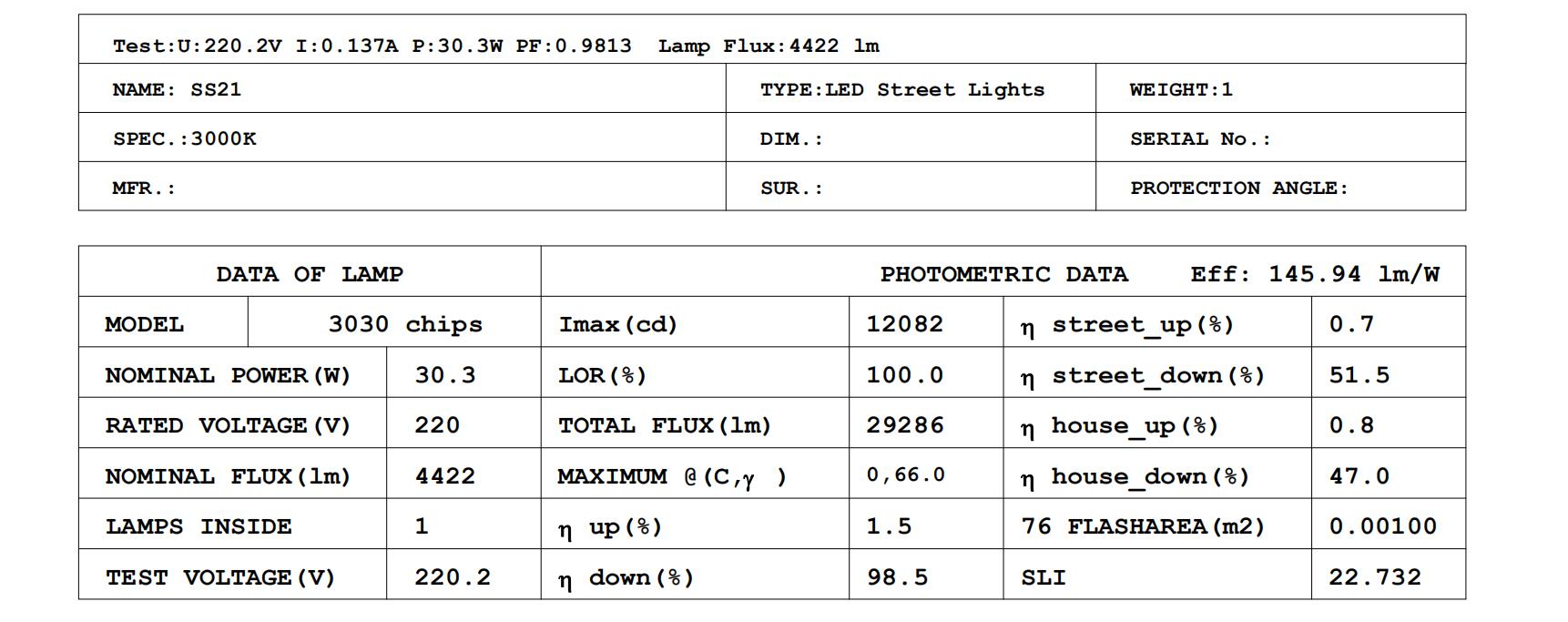

Test Report |  | |
|
Distributions Curves | TYPE II SHORT | TYPE III MEDIUM |
 |  | |

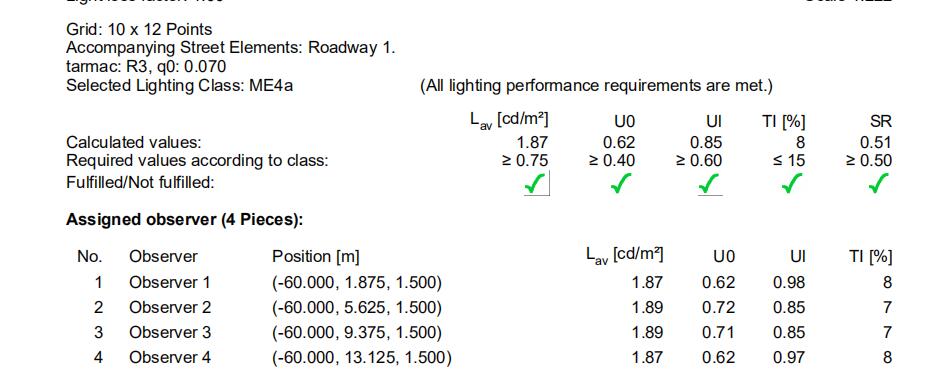

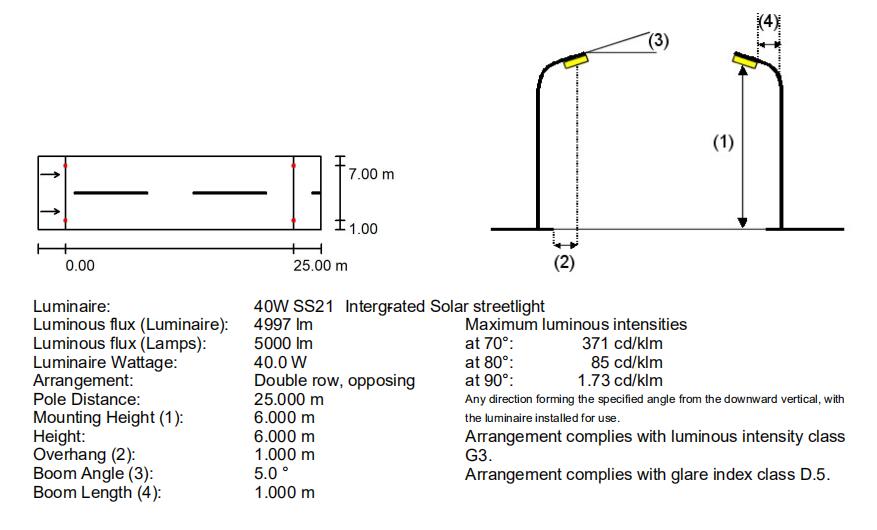

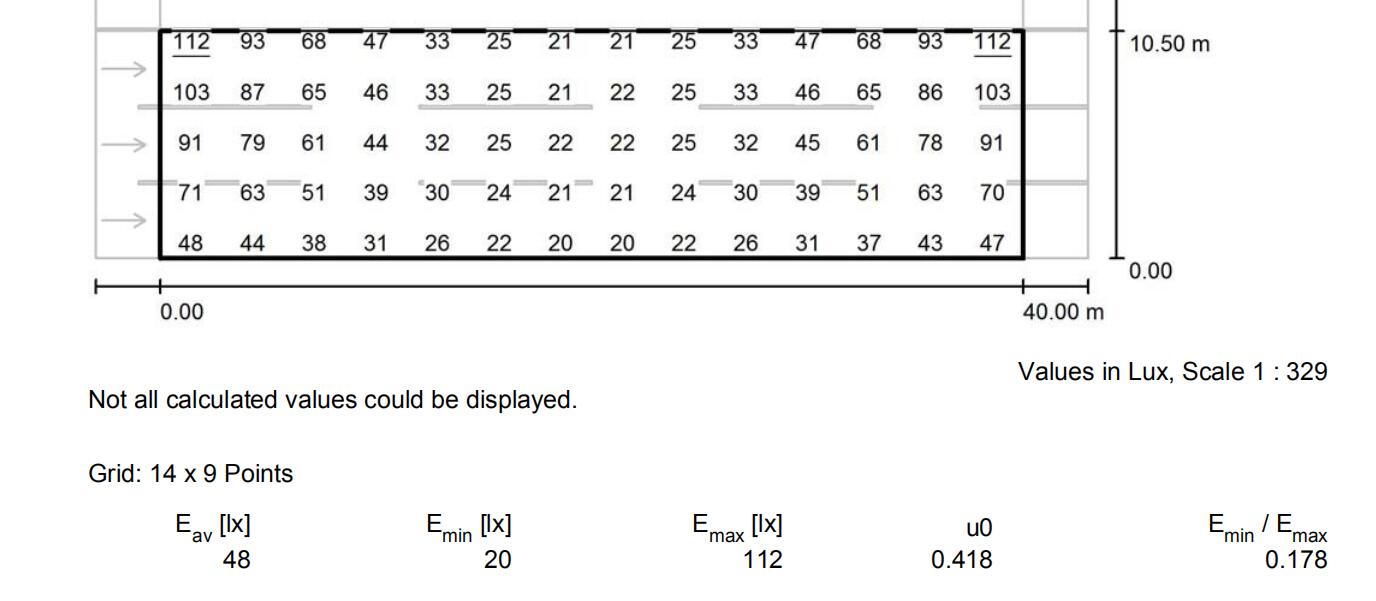

| Simulation of 8M pole 80W |  | |
 | ||
 | ||

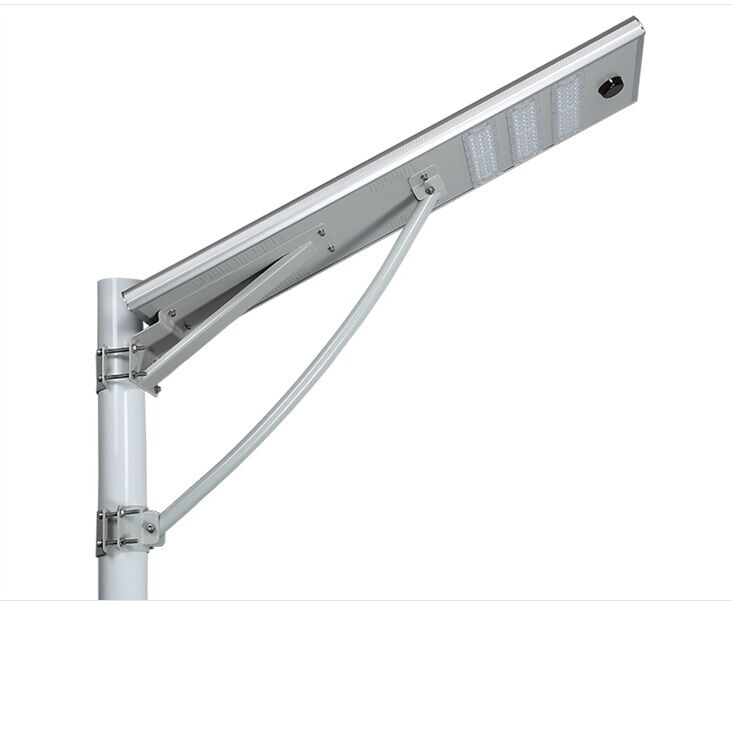

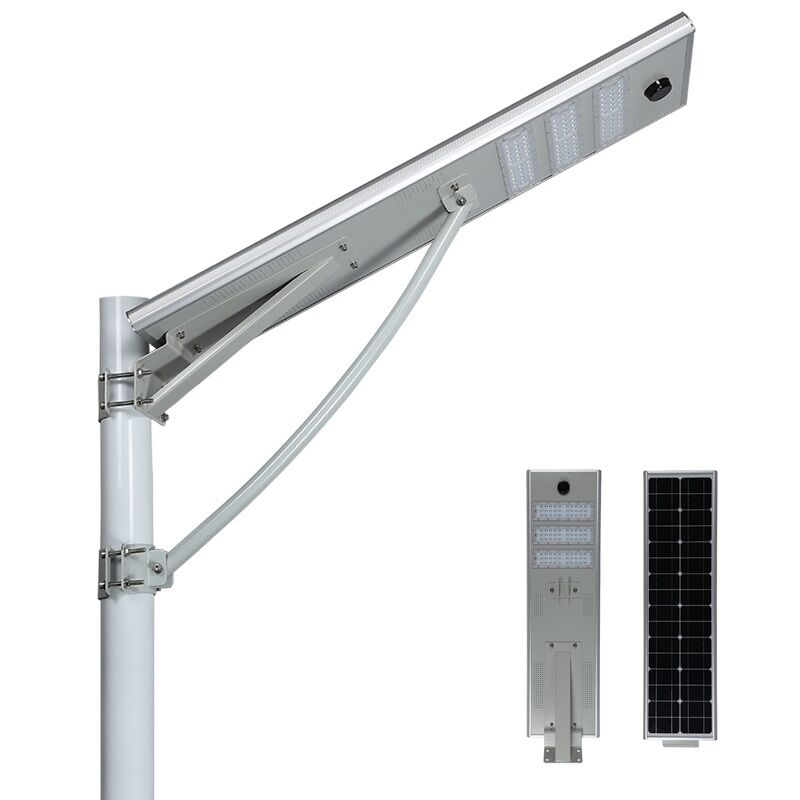

| Picture |  |
| Model | SS21-60w |
| Led Chips | Phillips |
| Wattage | 80W |
| Lumen Output | 11200LM |
| Control | PIR Control |
| Solar Panel | 100W |
| Battery Capacity | 12V,50AH |
| Battery Lifetime | Lifepo4, 3000cycles |
| Dimension | 136*45*7cm |
| Installing Height | 8-10M |
| MOQ | 10pcs |
Easy Installation

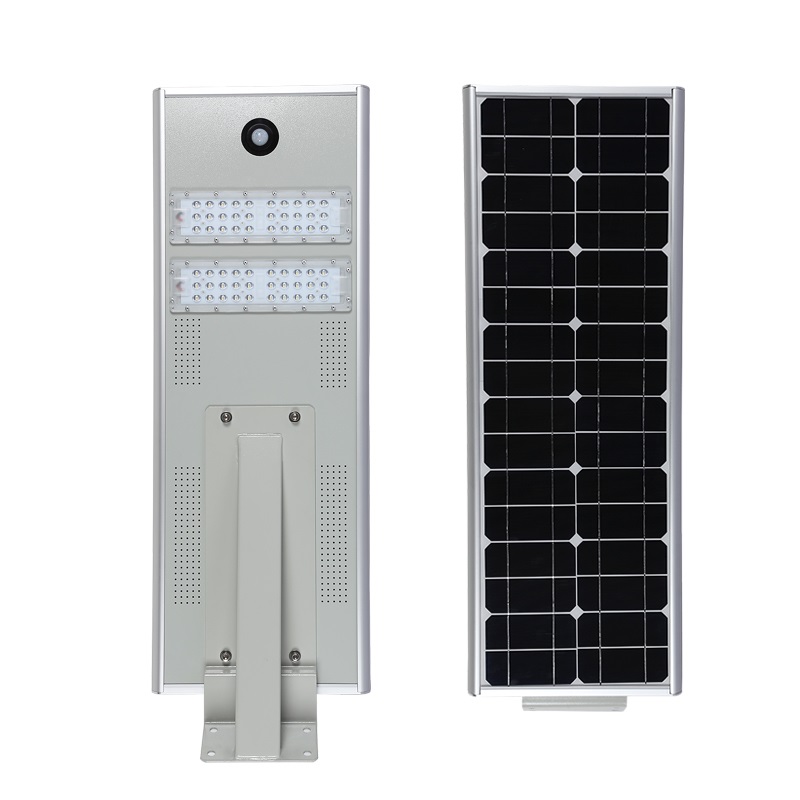

LED light, solar panel, lithium battery and controller,all in one compact design.
With this new design, it is easy installation, it could be installed by untrained workers within 5 minutes
Better performance
This 80W all in one solar street light is made of high quality LED lamp light,durable, superbright.
High end LED chips: It uses Phillips 3030 led chips with high lumen output. The lumen efficiency is up to 140lm/W which is 30% higher compared with existing integrated solar streetlights.
Solar Panel: This all in one solar streetlight is using monocrystalline silion, with 19.5% high efficiency solar panel, which can ensure the charging efficiency.
Anti-UV LENS: Imported aging resistant plastic particle is adopted for secondary light distribution, glare threshold lower than 10%, even degree over 0.7. No light spot or yellow circle on road
LIFEPO4 BATTERY: The solar streetlight is using LifePo4 Battery with over 3000cycles. The battery capacity is sustainable for lasting 2 or 3 rainy days
Intelligient Operation
NIGHT SENSOR: When any people pass by, the lamp will turn bright, and it will turn to dim light or off when people left. It will turn off at daytime.
ECO-FRIENDLY & ENERGY-SAVING: To charge under the sunlight during the day, transfer the Solar Energy into electricity and store them, and lighting at night. It’s very incredibly energy efficient.
Constant current charging and discharging management module uses high quality components from international brand like ST and IR, makes sure working life over 50000 hours. Lithium battery is equipped with automatic activation and low temperature protection function. With advanced MPPT technology, tracking efficiency is not less than 99.8%, DC-DC exchange rate is 98%. 4 periods time control mode can meet different demands from customers. Off line 2.4G programmable remote control, communication distance is 50m. Parameters, operating mode and electric quantity could be managed by mobile APP or computer software. Protection grade is IP67.
Good Warranty Terms
If our producst have met a problem, and we will provide product or spare parts replacement within 3 year warranty period.
1. Is sample availabe for test?
Yes, we are accepting the sample orders for your testing.
2. What is the MOQ ?
Low MOQ, sample 1pc and first trial order 8pcs.
3. What is the delivery time?
The delivery time is 20-25 days after getting the deposit payment.
4. Do you provide OEM service?
Yes, Amber believes the fastest and the most efficient way is to cooperate with all greatest customers based OEM business. OEM are welcomed.
5. What if i want to print my own color box?
The MOQ of the colored box is 1000pcs, so if your order qty is less than 1000pcs, we will charge a extra cost 350usd to make color boxes with your brand.
But if in the future, your total ordering qty has reached 1000pcs, we will refund 350usd to you.
